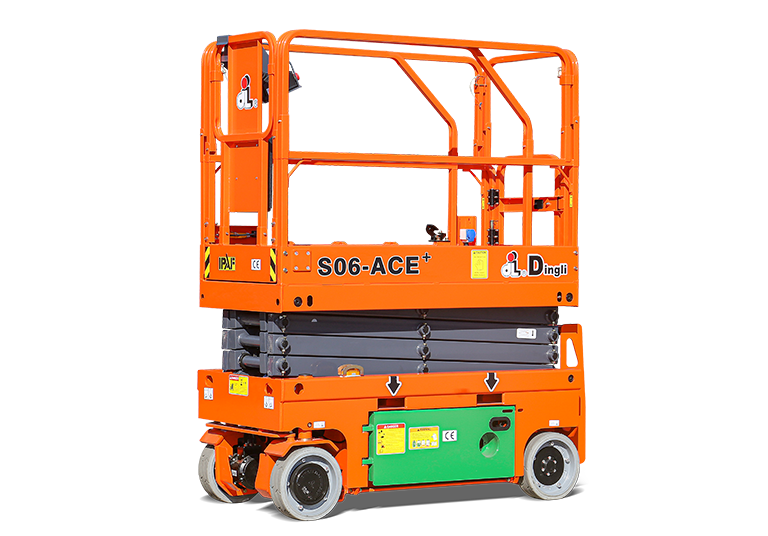

S06-ACE+
S06-ACE+
S06-ACE+
AC+ Scissor

● Performance+

1. Industry Leading Platform Capacity - Maximum increase up to 45% compared to the original model

2. Side and Rear Forklift Pockets - Multiple choices for transport efficiency

3. Lithium-Ion Battery with Long Duty Cycle and Fast Recharging - High-density battery pack with five-year warranty

4. High Strength Damage Resistant Tyres Compound - Double the life compared to conventional tyres



● Reliability+

5.Integrated Four-in-One Motor Controller - 40% reduction in connections and harnesses

6.New Platform Control Box - The durability of the touch pad is greatly improved, the new surface cleans easily, and the display is three times larger

7.Reliable Load Sensing System - Less affected by temperature and friction, scissor angle sensor reliability improvement



● Environment+

8. Hydraulic Oil Leak Containment - For applications with zero leak tolerance

9. Electric Actuator Steering System - No hydraulic oil, faster steering speed and 66% reduction in energy consumption

10. Gravity Down Energy Recovery System - Battery charge regeneration during platform descent

11. Highest Efficiency Electric Drive System - 15% decrease in energy consumption and higher power density

12. Highest Efficiency Electric Lift Pump System - 20% decrease in energy consumption and higher power density



  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height( Indoor)
    7.80m / 25ft 7in
    Max. Working Height(Outdoor)
    5.80m / 19ft
    Overall Length
    1.86m / 6ft 1in
    Overall Width
    0.76m / 2ft 6in
    Overall Height(Rails Up)
    2.15m / 7ft 1in
    Overall Height(Rails Down)
    1.83m / 6ft
    Platform Size(Length×Width)
    1.67m×0.74m / 5ft 6in×2ft 5in
    Platform Extension Size
    0.90m / 2ft 11in
    Ground Clearance(Stowed/Raised)
    0.09m/0.016m / 3in/1in
    Wheelbase
    1.36m / 4ft 5in
    Turning Radius(Inside/Outside)
    0m/1.64m / 0in/5ft 5in
    Tyres
    φ323×100mm
  • Performance
    Safe Working Load
    272kg / 600lb
    S.W.L On Extension
    113kg / 249lb
    Max. Occupants(Indoor/Outdoor)
    2/1
    Gradeability
    0.25
    Travel Speed(Stowed)
    ≯5.5km/h / ≯3.41mph
    Travel Speed(Raised)
    ≯0.6km/h / ≯0.37mph
    Max. Working Slope(X/Y)
    1.5°/3°
    Up/Down Speed
    22/22sec
  • Weight
    Overall Weight(Lead-acid Battery)
    1725kg / 3803lb
    Overall Weight(Lithium Battery)
    1630kg / 3594lblb
  • Power
    Hydraulic Tank
    7L / 1.7gal
    AGM Battery
    24V/185Ah
    Lithium Battery
    28.8V/125Ah
    Charger
    28V/30A
    Driving Motor
    2×15VAC/0.5kW
    Lifting Motor
    15VAC/3kW
    Options
    Max. Working Height(Outdoor)
    /
    Max. Platform Height(Outdoor)
    /
    Max. Occupants(Indoor/Outdoor)
    /
