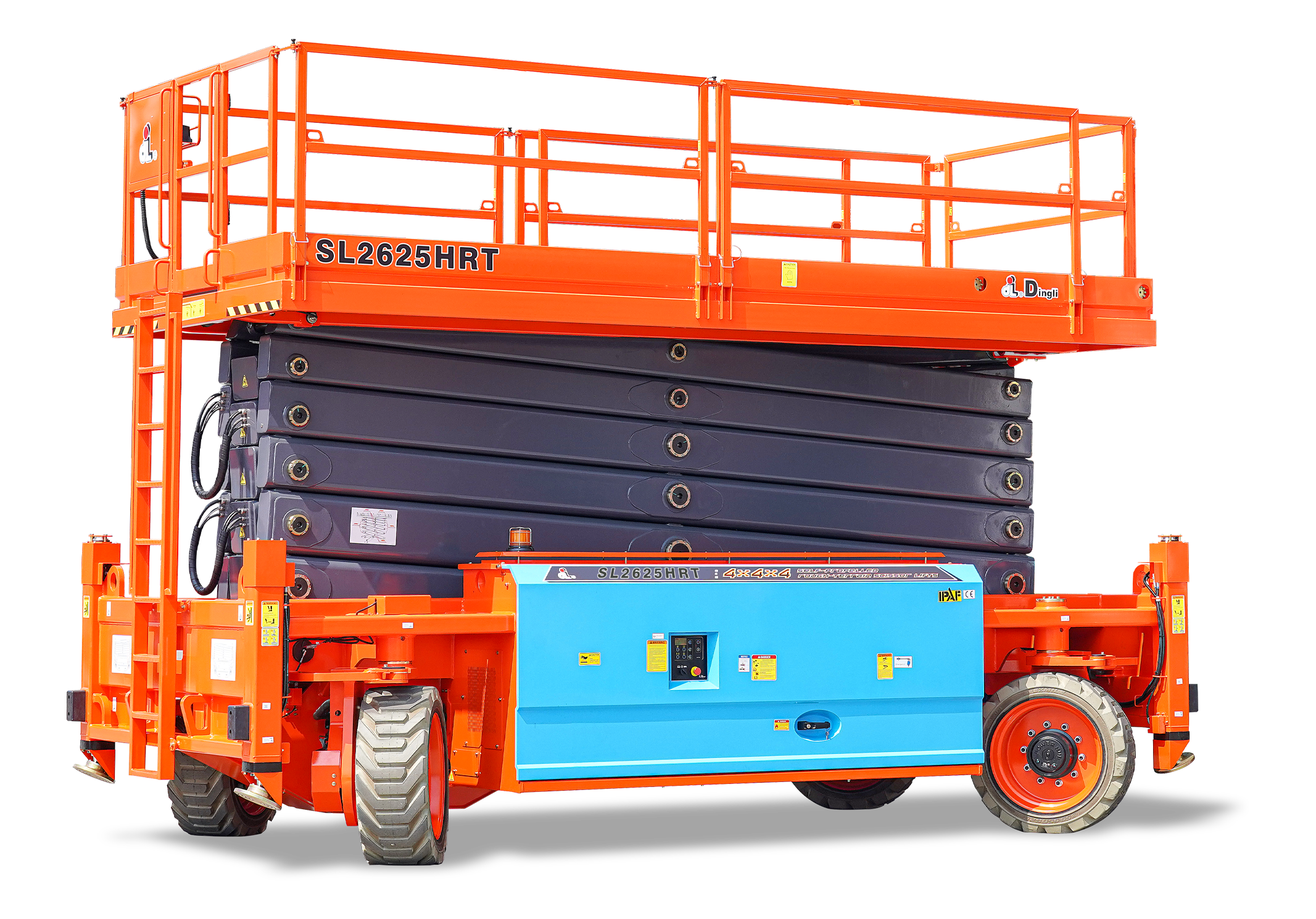

SL2625HRT
SL2625HRT
SL2625HRT
Large Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    28.00m / 91ft 10in
    Max. Platform Height
    26.00m / 85ft 4in
    Overall Length(Without Outriggers)
    /
    Overall Length(With Outriggers)
    5.96m / 19ft 7in
    Overall Width
    2.50m / 8ft 2in
    Overall Height(Rails Up)
    4.13m / 13ft 7in
    Overall Height(Rails Down)
    3.19m / 10ft 6in
    Platform Size(Length×Width)
    5.48m×2.45m / 18ft×8ft
    Platform Extension Size
    2.10m / 6ft 11in
    Ground Clearance(Stowed/Raised)
    0.23m / 9in
    Wheelbase
    4.10m / 13ft 5in
    Turning Radius(Inside/Outside)
    3.50m/6.00m / 11ft 6in/19ft 8in
    Tyres
    355/55D625
  • Performance
    Safe Working Load
    1000kg / 2204lb
    S.W.L On Extension
    1000kg / 2204lb
    Max. Occupants(Indoor/Outdoor)
    4/4
    Gradeability
    0.3
    Travel Speed(Stowed)
    ≯3.5km/h / ≯2.17mph
    Travel Speed(Raised)
    ≯0.3km/h / ≯0.19mph
    Travel Speed(Raised)(<11m/≥11m)
    /
    Max. Working Slope(X/Y)
    2°/3°
    Max. Working Slope(X/Y)(<11m/≥11m)
    -
    Up/Down Speed
    130/100sec
  • Weight
    Overall Weight(Without Outriggers)
    /
    Overall Weight(With Outriggers)
    20360kg / 44886lb
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    Kubota Z482/9.8kW
    Diesel Tank
    130L / 34gal
    Hydraulic Tank
    260L / 69gal
    Lead-acid Battery
    /
    Lead-Acid Maintenance-Free Battery
    /
    Lithium Battery
    80V/420Ah
    Charger
    80V/80A
    Driving Motor
    4×53VAC/2kW
    Lifting Motor
    53VAC/28kW
    Motor
    /
