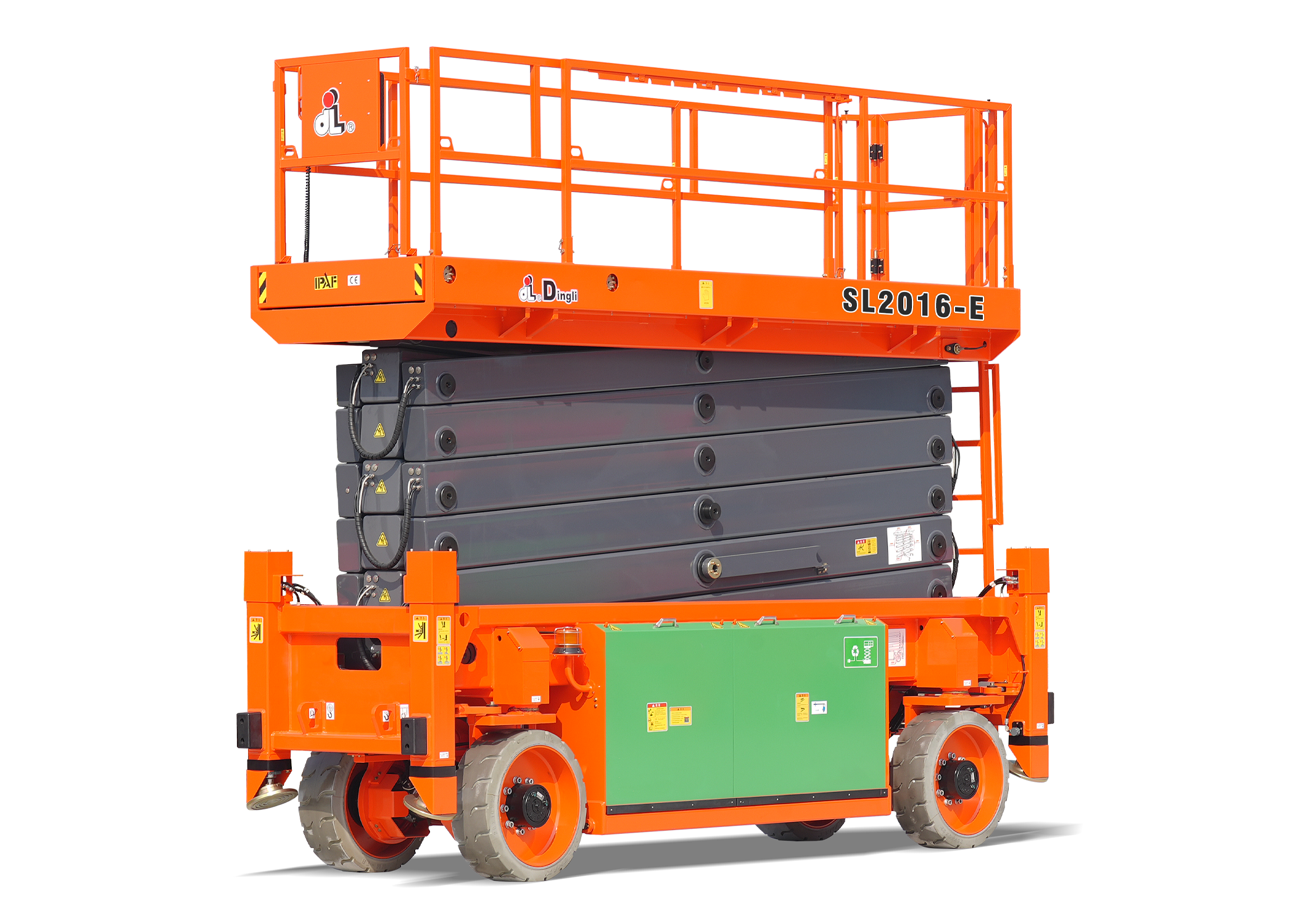

SL2016-E
SL2016-E
SL2016-E
Large Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    22.00m / 72ft 2in
    Max. Platform Height
    20.00m / 65ft 7in
    Overall Length(Without Outriggers)
    /
    Overall Length(With Outriggers)
    4.72m / 15ft 6in
    Overall Width
    1.60m / 5ft 3in
    Overall Height(Rails Up)
    3.82m / 12ft 6in
    Overall Height(Rails Down)
    2.99m / 9ft 10in
    Platform Size(Length×Width)
    4.30m×1.54m / 14ft 1in×5ft
    Platform Extension Size
    1.80m / 5ft 11in
    Ground Clearance(Stowed/Raised)
    0.20m /0.02m / 8in/1in
    Wheelbase
    3.18m / 10ft 5in
    Turning Radius(Inside/Outside)
    2.30m/3.00m/ 7ft 6in/9ft 10in
    Tyres
    28×10-22
  • Performance
    Safe Working Load
    750kg / 1653lb
    S.W.L On Extension
    750kg / 1653lb
    Max. Occupants(Indoor/Outdoor)
    2/2
    Gradeability
    0.25
    Travel Speed(Stowed)
    ≯3.5km/h / ≯2.17mph
    Travel Speed(Raised)
    ≯0.5km/h / ≯0.31mph
    Travel Speed(Raised)(<11m/≥11m)
    /
    Max. Working Slope(X/Y)
    1°/0°
    Max. Working Slope(X/Y)(<11m/≥11m)
    -
    Up/Down Speed
    85/75sec
  • Weight
    Overall Weight(Without Outriggers)
    /
    Overall Weight(With Outriggers)
    13000kg / 28660lb
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    /
    Diesel Tank
    /
    Hydraulic Tank
    130L / 34gal
    Lead-acid Battery
    48V/630Ah
    Lead-Acid Maintenance-Free Battery
    /
    Lithium Battery
    /
    Charger
    48V/60A
    Driving Motor
    4×32VAV/3.3kW
    Lifting Motor
    2×48VDC/8.0kW
    Motor
    /
