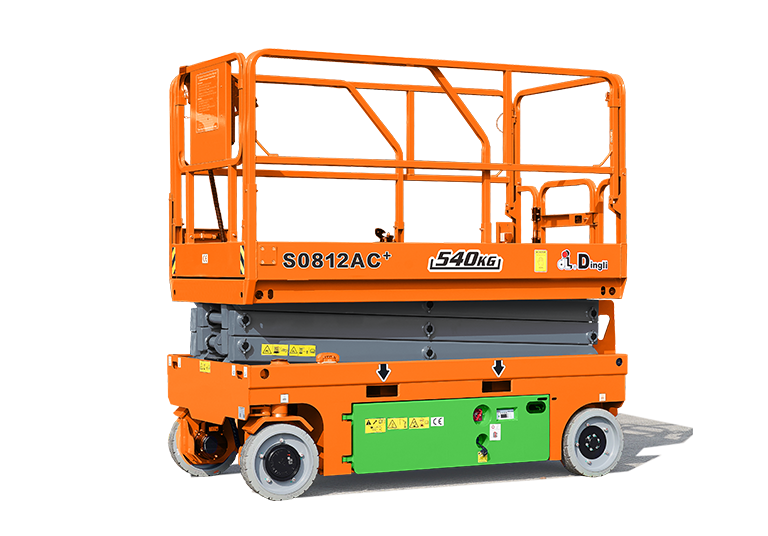

S0812AC+
S0812AC+
S0812AC+
AC+ Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height( Indoor）
    8.00m/26ft 3in
    Max. Working Height(Outdoor)
    6.00m/19ft 8in
    Overall Length
    2.48m/8ft 2in
    Overall Width
    1.15m/3ft 9in
    Overall Height(Rails Up)
    2.23m/7ft 4in
    Overall Height(Rails Down)
    1.70m/5ft 7in
    Platform Size(Length×Width)
    2.27m×1.12m/7ft 5in×3ft 8in
    Platform Extension Size
    0.90m/2ft 11in
    Ground Clearance(Stowed/Raised)
    0.10m/0.019m / 4in/1in
    Wheelbase
    1.87m/6ft 2in
    Turning Radius(Inside/Outside)
    0m/2.20m / 0in/7ft 3in
    Tyres
    φ381×127mm
  • Performance
    Safe Working Load
    540kg/1191lb
    S.W.L On Extension
    113kg/249lb
    Max. Occupants(Indoor/Outdoor)
    2/2
    Gradeability
    25%
    Travel Speed(Stowed)
    6.0km/h / 3.73mph
    Travel Speed(Raised)
    0.8km/h / 0.50mph
    Max. Working Slope(X/Y)
    X-1.5°/Y-3°
    Up/Down Speed
    31/30sec
  • Weight
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    1990kg/4387lb
  • Power
    Hydraulic Tank
    20L / 5.3gal
    AGM Battery
    /
    Lithium Battery
    28.8V/175Ah
    Charger
    28V/30A
    Driving Motor
    2×15VAC/0.87kW
    Lifting Motor
    15VAC/3.42kW
    Options
    Max. Working Height(Outdoor)
    /
    Max. Platform Height(Outdoor)
    /
    Max. Occupants(Indoor/Outdoor)
    /
