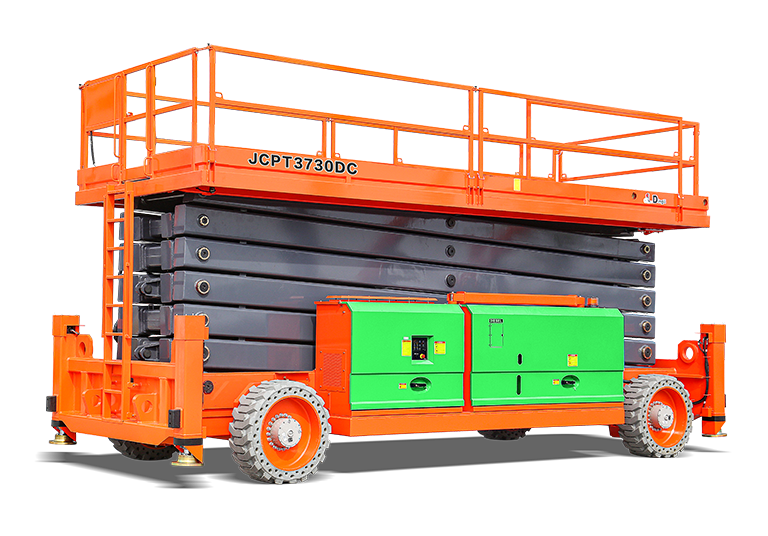

JCPT3730DC
JCPT3730DC
JCPT3730DC
Large Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    37.00m / 121ft 5in
    Max. Platform Height
    35.00m / 114ft 10in
    Overall Length(Without Outriggers)
    /
    Overall Length(With Outriggers)
    8.00m / 26ft 3in
    Overall Width
    3.00m / 9ft 10in
    Overall Height(Rails Up)
    4.20m / 13ft 9in
    Overall Height(Rails Down)
    3.25m / 10ft 8in
    Platform Size(Length×Width)
    7.46m×2.74m / 24ft 6in×9ft
    Platform Extension Size
    2.25m / 7ft 5in
    Ground Clearance(Stowed/Raised)
    0.35m / 1ft 2in
    Wheelbase
    5.50m / 18ft
    Turning Radius(Inside/Outside)
    5.00m/8.00m / 16ft 5in/26ft 3in
    Tyres
    Φ1025×365mm
  • Performance
    Safe Working Load
    750kg / 1654lb
    S.W.L On Extension
    750kg / 1654lb
    Max. Occupants(Indoor/Outdoor)
    4/4
    Gradeability
    0.25
    Travel Speed(Stowed)
    ≯2.7km/h / ≯1.68mph
    Travel Speed(Raised)
    ≯0.2km/h / ≯0.12mph
    Travel Speed(Raised)(<11m/≥11m)
    /
    Max. Working Slope(X/Y)
    2°/3°
    Max. Working Slope(X/Y)(<11m/≥11m)
    Up/Down Speed
    180/175sec
  • Weight
    Overall Weight(Without Outriggers)
    /
    Overall Weight(With Outriggers)
    39500kg / 87083lb
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    /
    Diesel Tank
    /
    Hydraulic Tank
    600L / 158gal
    Lead-acid Battery
    /
    Lead-Acid Maintenance-Free Battery
    /
    Lithium Battery
    80V/660Ah
    Charger
    80V/80A
    Driving Motor
    4×56VAC/6.0kW
    Lifting Motor
    2×53VAC/28kW
    Motor
    /
