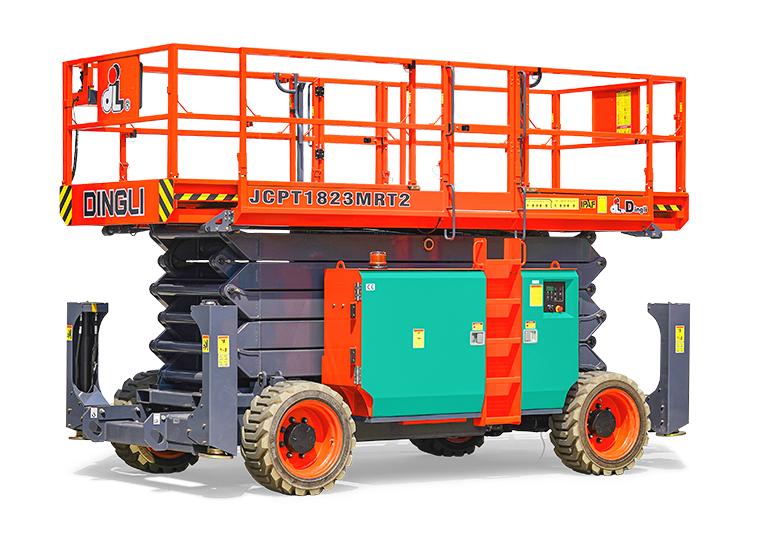

JCPT1823MRT2
JCPT1823MRT2
JCPT1823MRT2
Large Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    18.00m / 59ft 1in
    Max. Platform Height
    16.00m / 52ft 6in
    Overall Length(Without Outriggers)
    /
    Overall Length(With Outriggers)
    4.88m / 16ft
    Overall Width
    2.33m / 7ft 8in
    Overall Height(Rails Up)
    3.23m / 10ft 7in
    Overall Height(Rails Down)
    2.47m / 8ft 1in
    Platform Size(Length×Width)
    4.88m×1.83m / 16ft×6ft
    Platform Extension Size
    1.43m/1.13m / 4ft 8in/3ft 8in
    Ground Clearance(Stowed/Raised)
    0.30m / 1ft
    Wheelbase
    2.86m / 9ft 5in
    Turning Radius(Inside/Outside)
    2.70m/5.50m / 8ft 10in/18ft
    Tyres
    315/55/D20
  • Performance
    Safe Working Load
    680kg / 1499lb
    S.W.L On Extension
    227kg / 500lb
    Max. Occupants(Indoor/Outdoor)
    4/4
    Gradeability
    0.4
    Travel Speed(Stowed)
    ≯6.0km/h/≯3.73mph
    Travel Speed(Raised)
    /
    Travel Speed(Raised)(<11m/≥11m)
    ≯1.0km/h/≯0.6km/h / ≯0.62mph/≯0.37mph
    Max. Working Slope(X/Y)
    /
    Max. Working Slope(X/Y)(<11m/≥11m)
    2°/3° / 1.5°/3°
    Up/Down Speed
    78/74sec
  • Weight
    Overall Weight(Without Outriggers)
    /
    Overall Weight(With Outriggers)
    /
    Overall Weight(Lead-acid Battery)
    /
    Overall Weight(Lithium Battery)
    8840kg / 19489lb
  • Power
    Diesel Engine
    Kubota D1105/18.2kW
    Range Extended Engine
    /
    Diesel Tank
    80L / 21gal
    Hydraulic Tank
    120L / 31gal
    Lead-acid Battery
    /
    Lead-Acid Maintenance-Free Battery
    /
    Lithium Battery
    80VDC/67.5Ah
    Charger
    /
    Driving Motor
    /
    Lifting Motor
    /
    Motor
    80VDC/10KW
