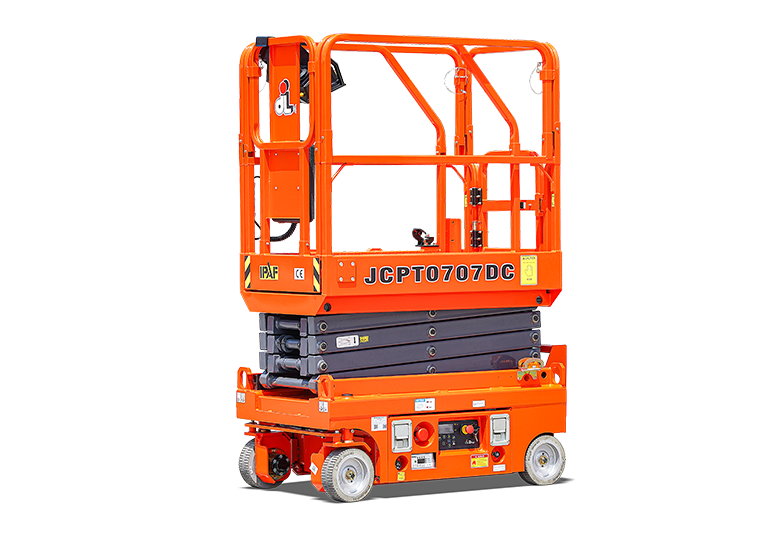

JCPT0707DC
JCPT0707DC
JCPT0707DC
Mini Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    6.50m / 21ft 4in
    Max. Platform Height
    4.50m / 14ft 9in
    Overall Length(With Ladder)
    1.44m / 4ft 9in
    Overall Length(Without Ladder)
    /
    Overall Width
    0.76m / 2ft 6in
    Overall Height(Rails Up)
    2.00m / 6ft 7in
    Overall Height(Rails Down)
    1.64m / 5ft 5in
    Platform Size(Length×Width)
    1.29m×0.70m / 4ft 3in×2ft 3in
    Platform Extension Size
    0.60m / 2ft
    Ground Clearance(Stowed/Raised)
    0.06m/0.015m / 2in/1in
    Wheelbase
    1.05m / 3ft 5in
    Turning Radius(Inside/Outside)
    0.40m/1.55m / 1ft 4in/5ft 1in
    Tyres
    φ230×80mm
  • Performance
    Safe Working Load
    240kg / 529lb
    S.W.L On Extension
    100kg / 220lb
    Max. Occupants(Indoor/Outdoor)
    2/0
    Gradeability
    0.25
    Travel Speed(Stowed)
    ≯4.0km/h / ≯2.49mph
    Travel Speed(Raised)
    ≯0.4km/h / ≯0.25mph
    Max. Working Slope(X/Y)
    1.5°/3°
    Up/Down Speed
    28/22sec
  • Weight
    Overall Weight(Lead-acid Battery)
    950kg/2094b
    Overall Weight(Lithium Battery)
    /
  • Power
    Hydraulic Tank
    3L / 0.6gal
    Lead-Acid Maintenance-Free Battery
    24V/85Ah
    Lithium Battery
    /
    Charger
    24V/15A
    Driving Motor
    2×24VDC/0.4kW
    Lifting Motor
    24VDC/1.2kW
