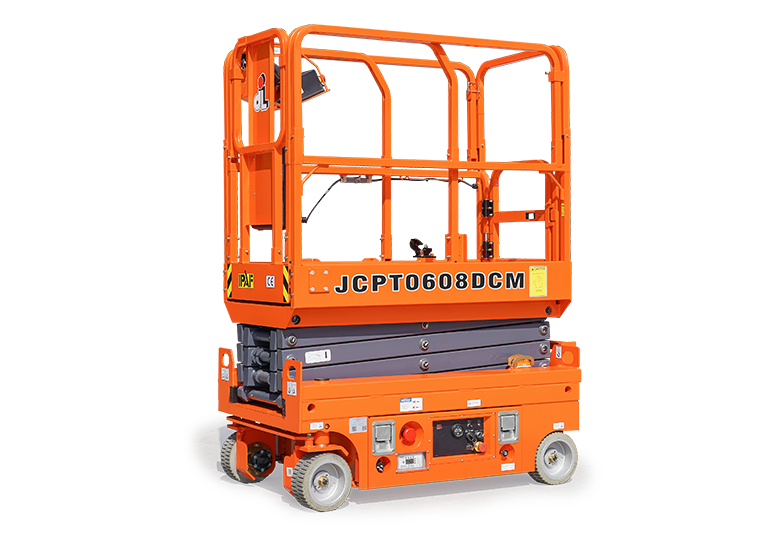

JCPT0608DCM
JCPT0608DCM
JCPT0608DCM
Mini Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    6.50m / 21ft 4in
    Max. Platform Height
    4.50m / 14ft 9in
    Overall Length(With Ladder)
    1.52m / 5ft
    Overall Length(Without Ladder)
    /
    Overall Width
    0.81m / 2ft 8in
    Overall Height(Rails Up)
    1.93m / 5ft 1in
    Overall Height(Rails Down)
    1.56m / 5ft 1in
    Platform Size(Length×Width)
    1.37m×0.70m / 4ft 6in×2ft 4in
    Platform Extension Size
    0.60m / 2ft
    Ground Clearance(Stowed/Raised)
    0.06m/0.015m / 2in/1in
    Wheelbase
    1.13m / 3ft 8in
    Turning Radius(Inside/Outside)
    0.45m/1.60m / 1ft 6in/5ft 3in
    Tyres
    φ230×100mm
  • Performance
    Safe Working Load
    230kg / 507lb
    S.W.L On Extension
    113kg / 249lb
    Max. Occupants(Indoor/Outdoor)
    2/0
    Gradeability
    0.25
    Travel Speed(Stowed)
    ≯4.0km/h / ≯2.49mph
    Travel Speed(Raised)
    ≯0.6km/h / ≯0.37mph
    Max. Working Slope(X/Y)
    1.5°/3°
    Up/Down Speed
    21/19sec
  • Weight
    Overall Weight(Lead-acid Battery)
    990kg / 2183lb
    Overall Weight(Lithium Battery)
    /
  • Power
    Hydraulic Tank
    4L / 1.1gal
    Lead-Acid Maintenance-Free Battery
    24V/115Ah
    Lithium Battery
    /
    Charger
    24V/15A
    Driving Motor
    2×24VDC/0.5kW
    Lifting Motor
    24VDC/2.2kW
