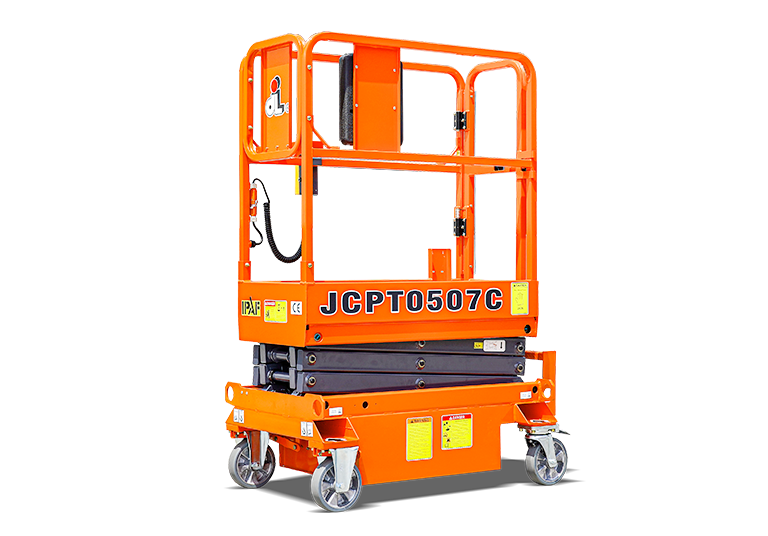

JCPT0507C
JCPT0507C
JCPT0507C
Mini Scissor
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    5.00m / 16ft 5in
    Max. Platform Height
    3.00m / 9ft 10in
    Overall Length(With Ladder)
    1.31m / 4ft 3in
    Overall Length(Without Ladder)
    /
    Overall Width
    0.75m / 2ft 5in
    Overall Height(Rails Up)
    1.80m / 5ft 11in
    Overall Height(Rails Down)
    /
    Platform Size(Length×Width)
    1.15m×0.66m / 3ft 9in×2ft 2in
    Platform Extension Size
    /
    Ground Clearance(Stowed/Raised)
    0.075m / 3in
    Wheelbase
    0.99m / 3ft 3in
    Turning Radius(Inside/Outside)
    /
    Tyres
    φ200×50mm
  • Performance
    Safe Working Load
    240kg / 529lb
    S.W.L On Extension
    /
    Max. Occupants(Indoor/Outdoor)
    1/0
    Gradeability
    /
    Travel Speed(Stowed)
    /
    Travel Speed(Raised)
    /
    Max. Working Slope(X/Y)
    1°/1°
    Up/Down Speed
    21/21sec
  • Weight
    Overall Weight(Lead-acid Battery)
    398kg / 878lb
    Overall Weight(Lithium Battery)
    /
  • Power
    Hydraulic Tank
    3L / 0.8gal
    Lead-Acid Maintenance-Free Battery
    12V/85Ah
    Lithium Battery
    /
    Charger
    12V/15A
    Driving Motor
    /
    Lifting Motor
    12VDC/0.8kW
