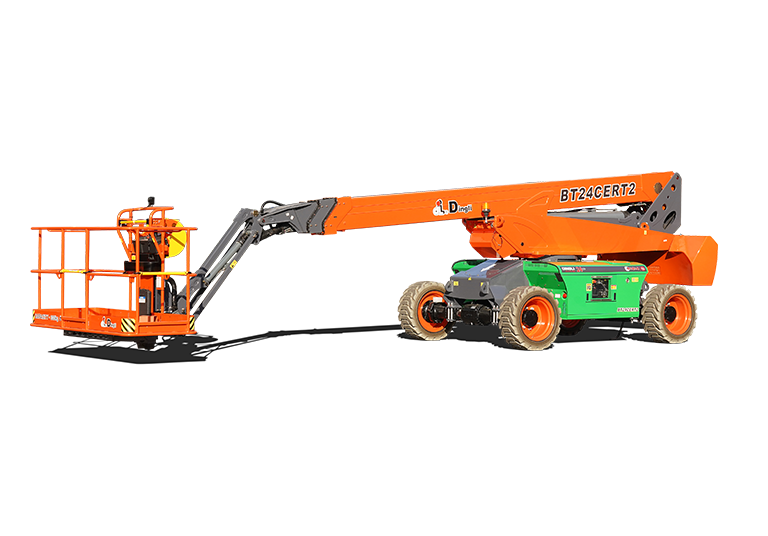

BT24CERT2
BT24CERT2
BT24CERT2
D Series
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    24.20m / 79ft 5in
    Max. Platform Height
    22.20m / 72ft 10in
    Max. Operating Range(+0.6m)
    17.64m / 57ft 10in
    Max. Platform Range
    17.04m / 55ft 11in
    Max. Up And Over Clearance
    /
    Max. Down Probing Depth
    /
    Flatbed Transport Dimensions (L×W×H)
    9.36m×2.50m×2.46m / 30ft 8in×8ft 2in×8ft 1in
    Platform Size(Length×Width)
    2.44m×0.91m / 8ft×3ft
    Turntable Tailswing
    1.21m / 4ft
    Ground Clearance
    0.28m / 11in
    Wheelbase
    2.50m / 8ft 2in
    Tyres
    315/55D20
  • Performance
    S.W.L(Unrestricted/Restricted)
    300kg / 661lb
    Max. Occupants
    2
    Gradeability
    0.4
    Travel Speed(Stowed)
    ≯6.0km/h / ≯3.7mph
    Travel Speed(Raised)
    ≯1.1km/h / ≯0.7mph
    Max. Working Slope(X/Y)
    5°/5°
    Turret Rotation
    360°Continuous
    Platform Rotation
    180°
    Jib Movement
    132°
    Main Boom Maximum Angle
    -5.5~75°
    Turning Radius(Inside/Outside)-Two-Wheel Steering
    3.68m/5.54m / 12ft 1in/18ft 2in
    Turning Radius(Inside/Outside)-Four-Wheel Steering-optional
    1.71m/2.98m / 5ft 7in/9ft 9in
  • Weight
    Overall Weight(Lead-acid Battery)
    12000kg / 26455lb
    Overall Weight(Lithium Battery)-optional
    /
  • Power
    Diesel Engine
    /
    Range Extended Engine
    /
    Mild Hybrid Motor
    /
    Diesel Tank
    /
    Hydraulic Tank
    160L / 42gal
    Emergency Power System
    12V
    Lead-acid Battery
    /
    Lithium Battery
    80V/320Ah
    Charger
    48VDC/60A
    Driving Motor
    80VDC/30kW
    Pump Motor
    80VDC/26kW
