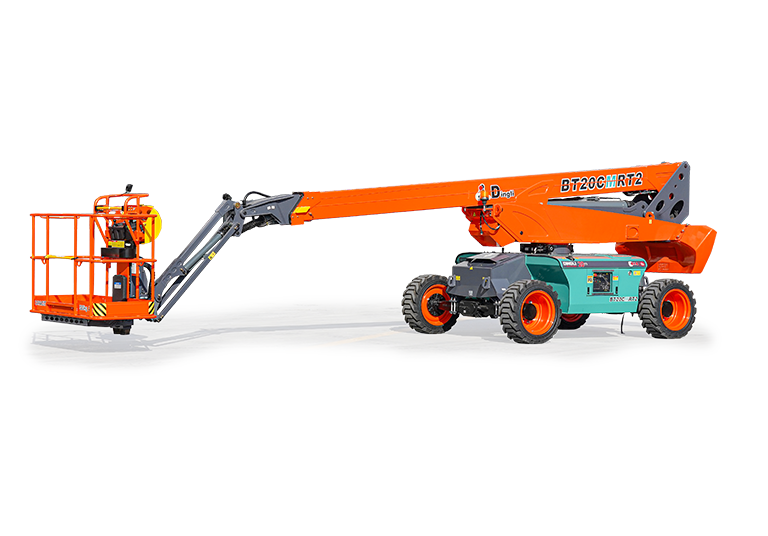

BT20CMRT2
BT20CMRT2
BT20CMRT2
D Series
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    20.23m / 66ft 4in
    Max. Platform Height
    18.23m / 60ft
    Max. Operating Range(+0.6m)
    13.36m / 44ft
    Max. Platform Range
    12.76m / 41ft 10in
    Max. Up And Over Clearance
    /
    Max. Down Probing Depth
    /
    Flatbed Transport Dimensions (L×W×H)
    7.63m×2.44m×2.68m / 25ft×8ft×9ft
    Platform Size(Length×Width)
    1.83m×0.79m / 6ft×2ft 7in
    Turntable Tailswing
    1.24m / 4ft 1in
    Ground Clearance
    0.31m / 1ft
    Wheelbase
    2.40m / 7ft 10in
    Tyres
    315/55D20
  • Performance
    S.W.L(Unrestricted/Restricted)
    320kg / 705lb
    Max. Occupants
    2
    Gradeability
    0.4
    Travel Speed(Stowed)
    ≯6.0km/h / ≯3.7mph
    Travel Speed(Raised)
    ≯1.1km/h / ≯0.7mph
    Max. Working Slope(X/Y)
    5°/5°
    Turret Rotation
    360°Continuous
    Platform Rotation
    180°
    Jib Movement
    132°
    Main Boom Maximum Angle
    75°
    Turning Radius(Inside/Outside)-Two-Wheel Steering
    3.00m/4.73m / 9ft 10in/15ft 6in
    Turning Radius(Inside/Outside)-Four-Wheel Steering-optional
    1.31m/2.58m / 4ft 3in/8ft 6in
  • Weight
    Overall Weight(Lead-acid Battery)
    8150kg / 17967lb
    Overall Weight(Lithium Battery)-optional
    /
  • Power
    Diesel Engine
    Kubota D1105/18.2kW
    Range Extended Engine
    /
    Mild Hybrid Motor
    /
    Diesel Tank
    115L / 30gal
    Hydraulic Tank
    145L / 38gal
    Emergency Power System
    12V
    Lead-acid Battery
    /
    Lithium Battery
    80VDC/67.5Ah
    Charger
    48VDC/60A
    Driving Motor
    /
    Pump Motor
    /
