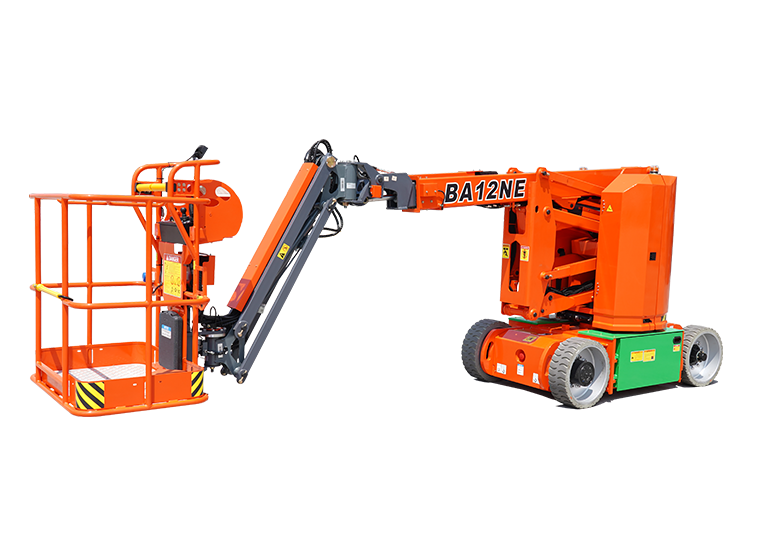

BA12NE
BA12NE
BA12NE
Small Boom
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    11.80m / 38ft 9in
    Max. Platform Height
    9.80m / 32ft 2in
    Max. Operating Range(+0.6m)
    /
    Max. Platform Range
    6.50m / 21ft 4in
    Max. Horizontal Reach
    /
    Max. Up And Over Clearance
    4.70m / 15ft 5in
    Overall Length(Stowed)
    5.74m / 18ft 10in
    Overall Length(Transport)
    3.89m / 12ft 9in
    Overall Width(Stowed)
    1.20m / 3ft 11in
    Overall Height(Stowed)
    2.00m / 6ft 7in
    Overall Height(Transport)
    2.29m / 7ft 6in
    Platform Size(Length×Width)
    1.17m×0.76m / 3ft 10in×2ft 6in
    Turntable Tailswing
    0m / 0in
    Ground Clearance
    0.09m / 3in
    Wheelbase
    1.65m / 5ft 5in
    Tyres
    22×7
  • Performance
    S.W.L(Unrestricted/Restricted)
    227kg / 500lb
    Max. Occupants
    2/2
    Gradeability
    0.35
    Travel Speed(Stowed)
    ≯4.8km / ≯2.9mph
    Travel Speed(Raised)
    ≯0.8km / ≯0.4mph
    Max. Working Slope(X/Y)
    2.5°/4.5°
    Turret Rotation
    355°Discrete
    Platform Rotation
    180°
    Jib Swing Angle
    180°
    Jib Movement
    139°
    Main Boom Maximum Angle
    /
    Turning Radius(Inside/Outside)
    1.50m/3.20m / 4ft 11in/10ft 6in
  • Weight
    Overall Weight(Lead-acid Battery)
    7080kg / 15609lb
    Overall Weight(Lithium Battery)
    7080kg / 15609lb
    Overall Weight
    /
  • Power
    Diesel Engine
    /
    Diesel Tank
    /
    Hydraulic Tank
    /
    Emergency Power System
    /
    Lead-acid Battery
    48V/280Ah
    Lithium Battery
    48V/250Ah
    Charger
    48V/35A
    Driving Motor
    2×32VAC/3.3kW
    Lifting Motor
    30VAC/5.0kW
