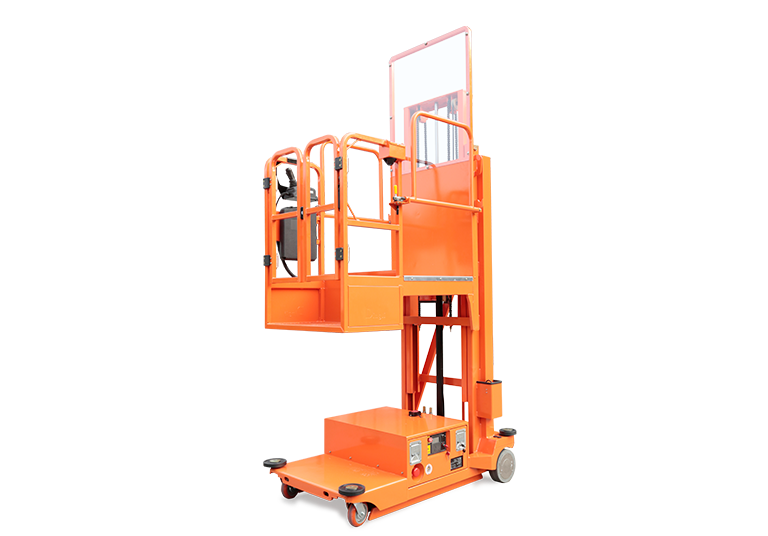

TT37
TT37
TT37
Self-propelled Aerial Stock Picker

● Suitable for warehouse, supermarket and other narrow space environment

● Fault diagnosis, oil pipe explosion-proof system

● Automatic pit protection

● Full height driving



Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Size
    Max. Working Height
    5.70m/18ft 8in
    Max. Platform Height
    3.70m/12ft 2in
    Overall Length
    1.56m/5ft 1in
    Overall Width
    1.06m/3ft 6in
    Overall Height
    2.42m/7ft 11in
    Platform Size(Length×Width)
    0.71m×0.80m/2ft 4in×2ft 8in
    Ground Clearance
    0.08m/3in
    Wheelbase
    1.27m/4ft 2in
    Turning Radius
    0
    Tyres(Drive Motors)
    φ230×80mm/φ9in×3in
    Tyres(Front Motors)
    0.15m/6in
    Tyres(Front)
    /
    Tyres(Back)
    /
  • Performance
    S.W.L
    300kg/661lb
    Max. Occupants
    1
    Travel Speed(Stowed)
    4.0km/h / 2.50mph
    Travel Speed(Raised)
    0.8km/h / 1.50mph
    Up/Down Speed
    20/19sec
    Gradeability
    25%
    Max. Working Slope
    X-1.5°/Y-2°
  • Weight
    Overall Weight
    720kg/1587lb
  • Power
    Battery
    2×12V/105Ah
    Integrated Charger
    24V/30A
    Driving Motor
    2×24V/0.4kW
    Lifting Motor
    24V/2.2kW
