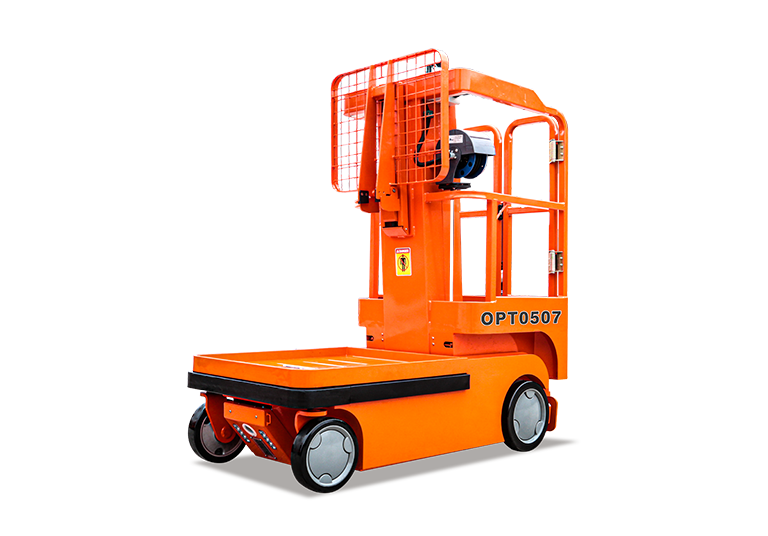

OPT0507
OPT0507
OPT0507
Oil-free&All-electric Order Picker

● "oil free" design, energy saving and environmental protection

● Maximum speed 4.8km/h, high efficiency

● Small size, minimum turning radius 0m/1.3m (inside/outside wheel), good maneuverability

● Multi-stage loading platform is configured to meet the needs of material transportation


Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Size
    Max. Working Height
    4.99m/16ft 4in
    Max. Platform Height
    2.99m/9ft 10in
    Overall Length
    1.59m/5ft 3in
    Overall Width
    0.75m/2ft 6in
    Overall Height
    1.59m/5ft 3in
    Ground Clearance
    0.04m/2in
    Wheelbase
    1.11m/3ft 8in
    Turning Radius(Inside/Outside)
    0m/1.30m / 0in/4ft 3in
    Wheels(Front)
    Φ254×63.5mm
    Wheels(Back)
    Φ305×80mm
  • Performance
    S.W.L Of Platform(For Person)
    135kg/297lb
    S.W.L Of Platform(For Goods-Up)
    90kg/198lb
    S.W.L Of Platform(For Goods-Down)
    115kg/253lb
    Max. Occupants
    1
    Forward Speed(Stowed)
    4.80km/h / 3.0mph
    Back Speed(Stowed)
    3.20km/h / 2.0mph
    Travel Speed(Raised)
    1.30km/h / 0.80mph
    Up/Down Speed
    18/18sec
    Gradeability
    15%
    Max. Working Slope
    0°
  • Weight
    Overall Weight
    640kg/1410lb
  • Power
    Battery
    2×12V/115Ah
    Charger
    24V/15A
    Driving Motor
    2×24V/0.68kW
    Lifting Motor
    24V/1.4kW
